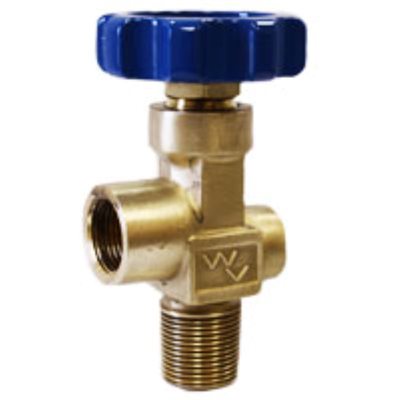

1200N Series Valve / No PRD
Design Specifications:
- Valve type - Pressure seal valve, Teflon packing seal
- Pressure Rating - Valve body pressure rating 5000 psi
- Reference CGA V-1 publication for outlet pressure ratings where applicable
- Cv Factor - .46
Material Specifications:
- Brass valve body
- Brass seat plug available with Nylon soft seat
- Brass stem
- Brass packing nut
- Virgin Teflon packing
Additional Information (Select to download Product PDF Details):
Replacement and Repair Parts
Rebuild kit for 1200 series
P/N: 1200-KIT
Seat Plug
P/N: 206-55N
Stem
P/N: 206-2
Valve Packing Nut
P/N: 306-3
Teflon Packing
P/N: 306-6
Valve Thrust Washer
P/N: 306-14
Handwheel / Handle Spring
P/N: 306-11
Valve Handwheel Nut
P/N: 306-17
Handwheel
P/N: 306-5
