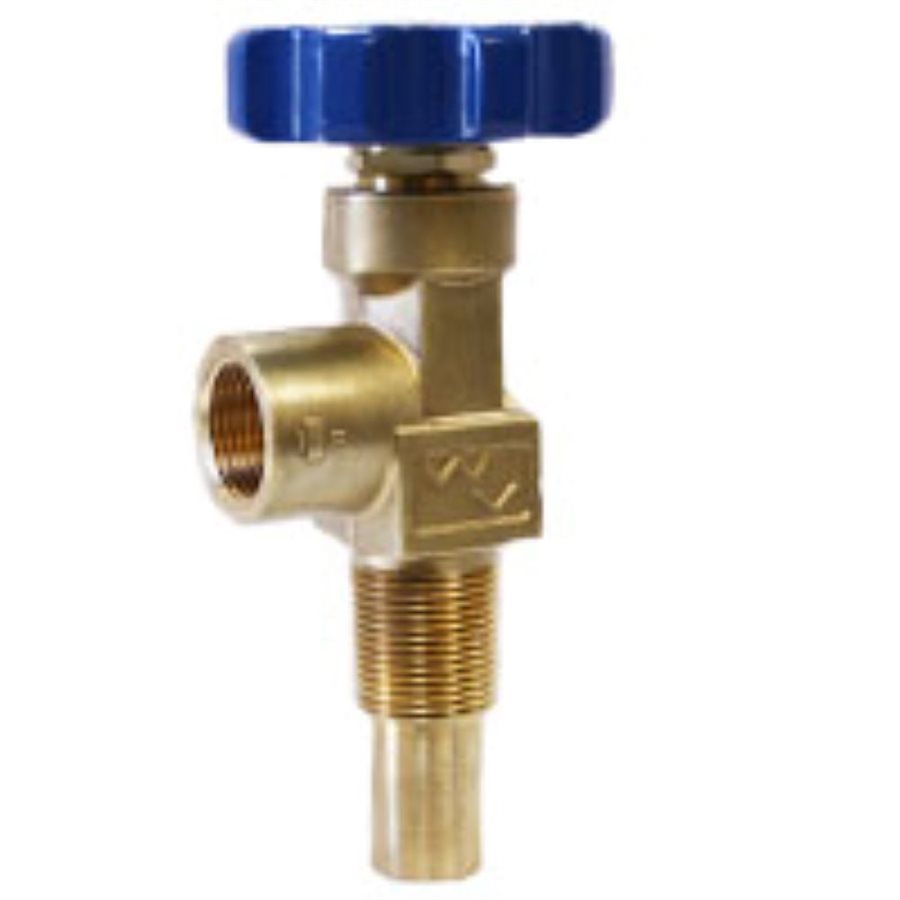

P13N Series Valve

P13N Series Valve

Add to Quote
P/N: P13N580E Category:

3/4" NGTXCGA580 High Flow Valve W/Shear Poppet Design Specifications:

  • Valve type -  O-ring seal, low torque operation design with shear poppet
  • Pressure Rating - Valve body pressure rating 5000 psi
  • Reference CGA V-1 publication for outlet pressure ratings where applicable.
  • Cv Factor - 1.16
  • ISO 10297 approved

Material Specifications:

  • Brass valve body
  • Brass seat plug available with Kel-F or Vespel soft seat
  • Brass stem
  • Brass bonnet assembly with low temperature fluorocarbon Rod T-seal and Teflon back-up rings
  • Teflon coated stainless steel bonnet seal ring
  • Nylatron thrust washer
  • Brass poppet with Viton seal



Additional Information (Select to Download Product PDF Details)

P13N ASSY

Related products

Replacement and Repair Parts

Rebuild kit for 13N & P13N series w / Kel-F seat

P/N: 13N-Kit

Rebuild kit for 13N & P13N Series w / Vespel seat

P/N: 13NV-Kit

13N & P13N Series Bonnet Drive Assy.

P/N: 406-32A

Seal Washer

P/N: 406-6

Seat Plug w / Kel-F Seat

P/N: 306-55K

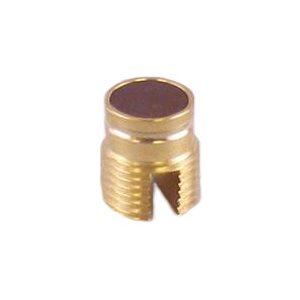

Seat Plug w / Vespel Seat

P/N: 306-55V

Valve Handwheel Nut

P/N: 306-17

Handwheel / Handle Spring

P/N: 306-11

Handwheel

P/N: 306-5
