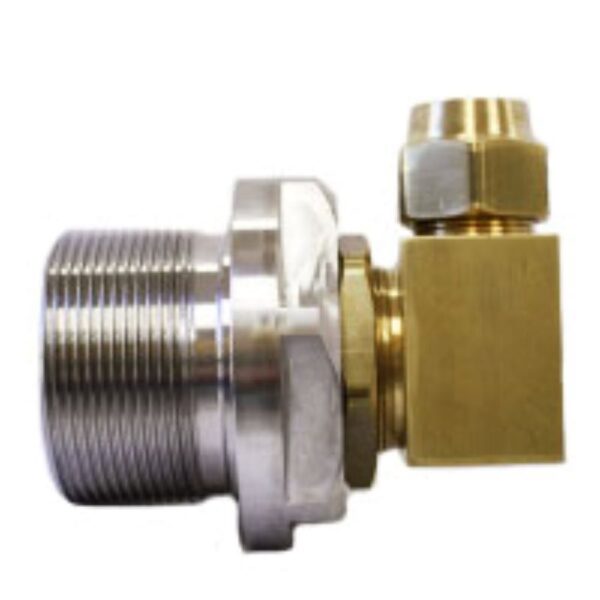

Bullplug Relief Device

Bullplug Relief Device

Add to Quote
P/N: 9165K-18C Categories: ,
Specifications:
  • 304L stainless steel end plug PRD w/ brass components
  • Burst disc - Carpenter 20Cb3 material
  • Copper washer seal
  • 17-4PH stainless steel shear ring
  • Rupture range 3700-4000 psi @ 160ºF
  • Flow - 928 CFM of air @ 60ºF & 100 psi
  • Manufactured in accordance with the CGA S-1.1 standard



Additional Information (Select to download Product PDF Details):

9165 Assy PDF

Related products

Replacement and Repair Parts

Copper Washer

S/N: 9146-6C

Rupture Disc

P/N: 9146-18 SERIES

Shear Ring

P/N: 9146-24H

S.S. Bullplug Safety Body

P/N: 9165S-1

Brass Torque Plug for 9165

S/N: 9146-88

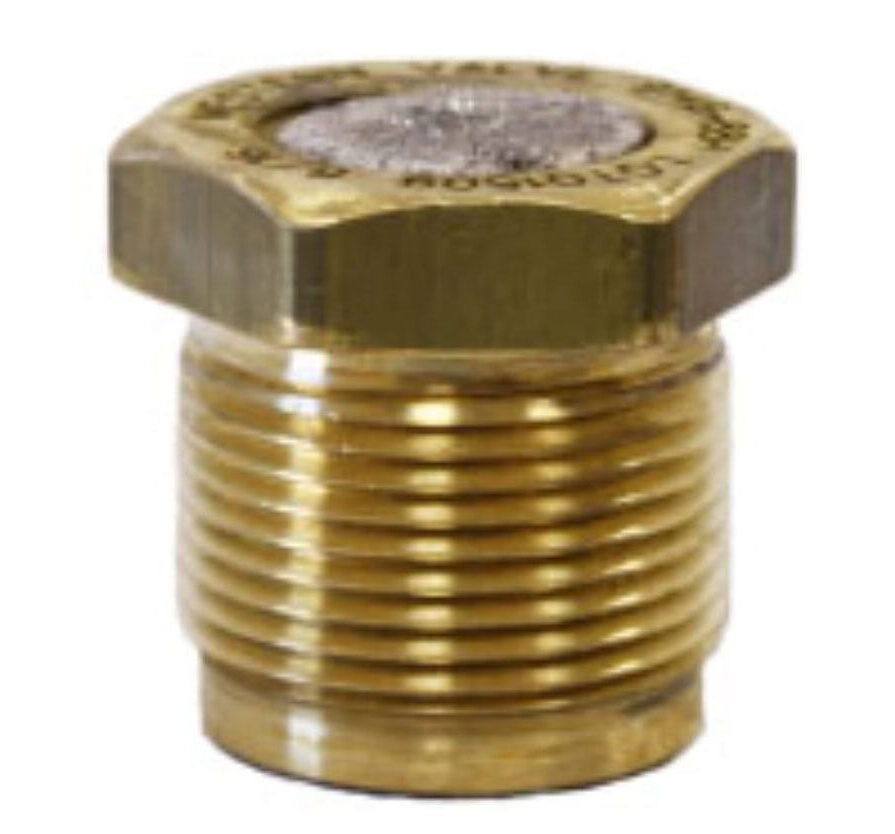

Brass Torque Plug for 9165 w / 165*F Fuseable Alloy

P/N: 9146-88H

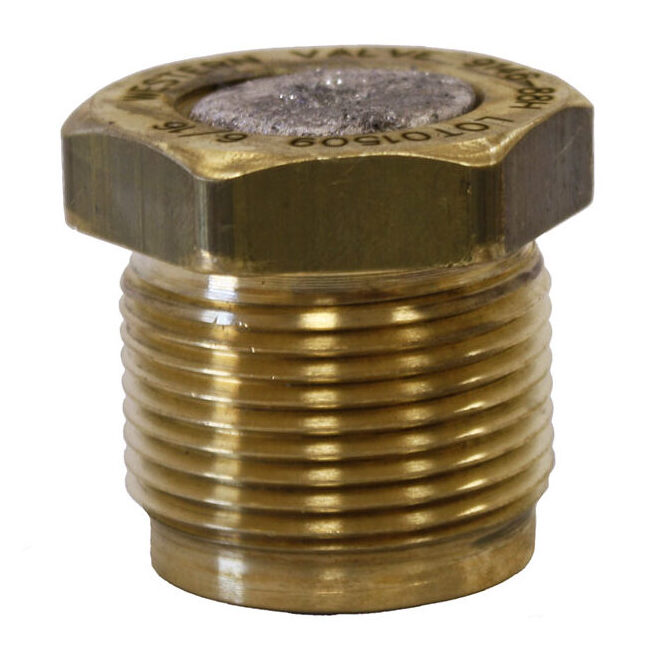

Brass Torque Plug for 9165 w / 212*F Fuseable Alloy

P/N: 9146-88J

S.S. Torque Plug for 9165S

P/N: 9146-88S

SS Shear Plug w/ 165 Fusemetal

P/N: 9146-88SH

SS Shear Plug w / 212 Fusemetal

P/N: 9146-88SJ

Elbow for 9165

S/N: 9146-97U

Flare Nut 1-1/8″

P/N: 9146-29

Flare Nut 1″

P/N: 9146-29F

Vent Tube Nut 1-1 / 8″

P/N: 9146-28

Vent Tube Nut 1″

P/N: 9146-28F

Elbow for 9165 w / 1″ Tubing Connection

P/N: 9146-96U

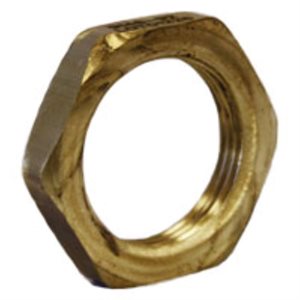

9165 Lock Nut

S/N: 9146-89

Standard Weather Membrane

P/N: 9160-83

Weather Membrane for 9146 elbow

P/N: 9160-83U

Non-Vent Plug for 9165

P/N: 9165-20

Bullplug Teflon Backup Ring

S/N: 9146-97-2

Bullplug “O” Ring

P/N: 9146-97-1
