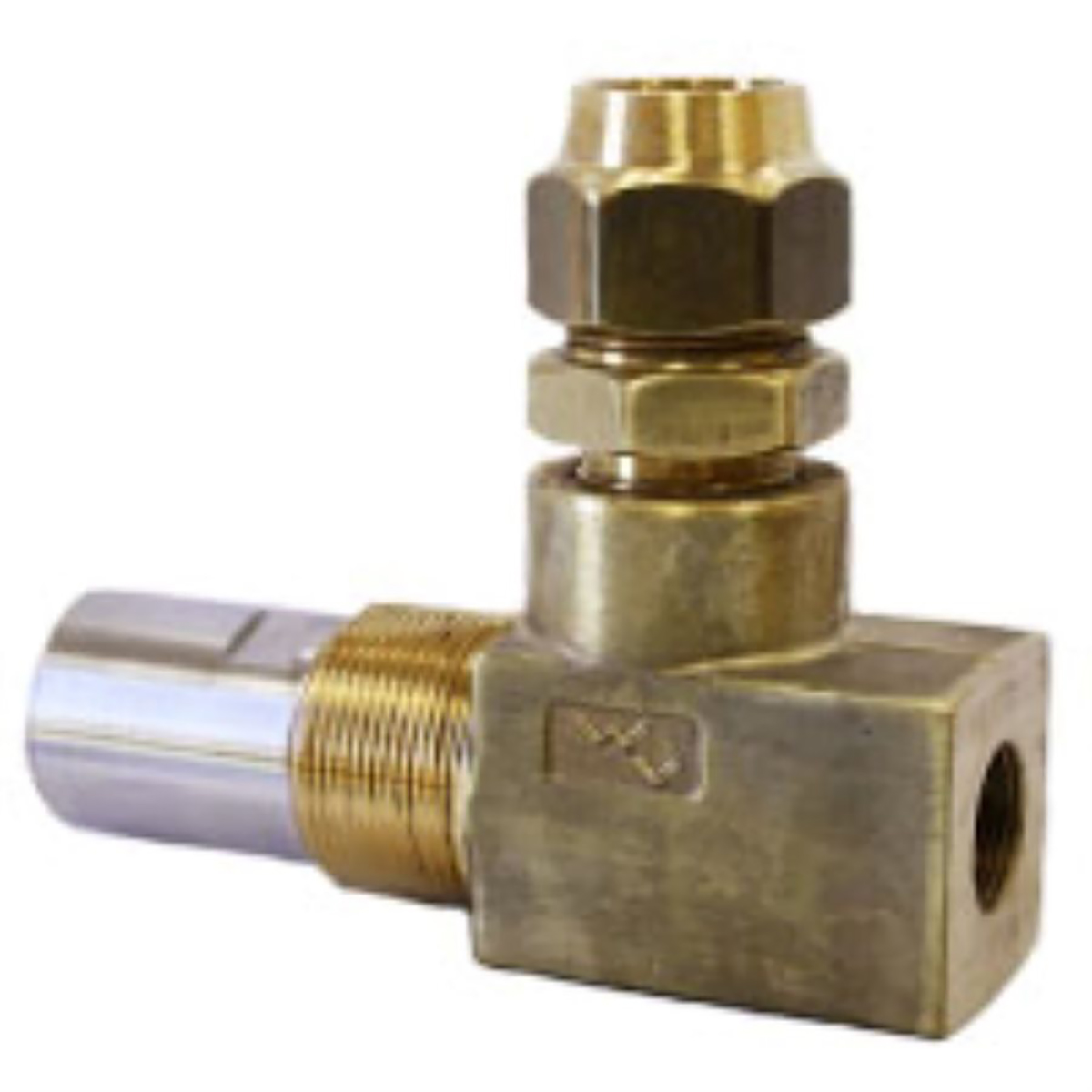

Relief Device w/Shear Poppet

Relief Device w/Shear Poppet

Add to Quote
P/N: P8161XK-18C Categories: ,
Specifications:
  • Brass relief device w/ shear poppet
  • Burst disc - Carpenter 20Cb3
  • Copper washer seal
  • 17-4ph stainless steel shear ring
  • Rupture range 3700-4000 psi @ 160ºF
  • Flow 576 CFM of air @ 60ºF and 100 psi
  • Manufactured in accordance with the CGA S-1.1 standard



Additional Information (Select to download Product PDF Details):

P8161X Assy PDF

Related products

Replacement and Repair Parts

Copper Washer

P/N: 9146-6C

Rupture Disc

P/N: 9146-18 SERIES

Shear Ring

P/N: 9146-24H

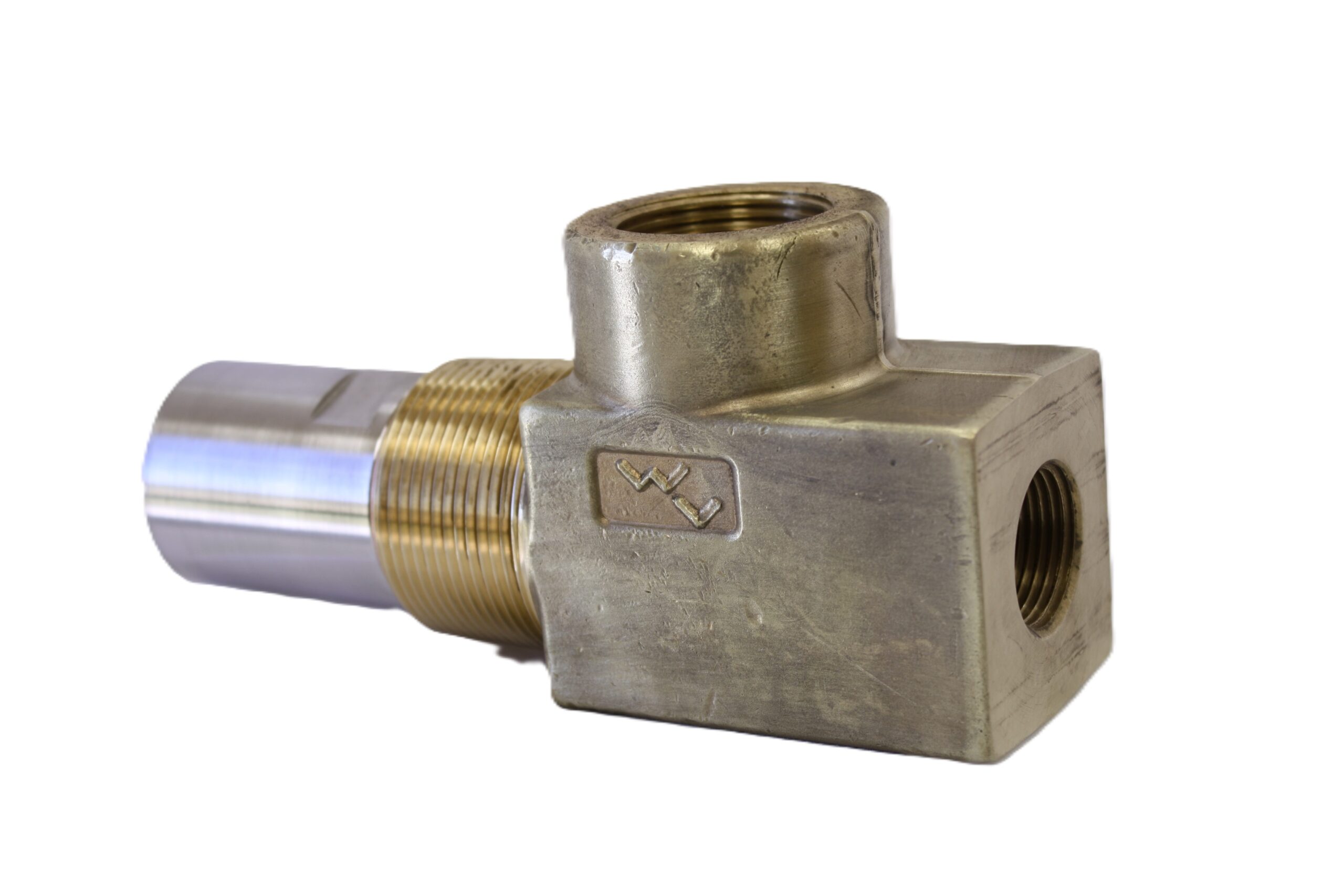

1-1/2″ MNGT x 3/4″NGT Safety Body, w/Poppet Body

P/N: P8161X-1

Brass Adaptor

P/N: 9146-30K

Brass Adapter w/ Recess

P/N: 9146-30U

Brass Adapter W / 165 Fusemetal

P/N: 9146-30KH

Brass Adapter W / 212 Fusemetal

P/Ne: 9146-30KJ

Flare Nut 1-1/8″

P/N: 9146-29

Flare Nut 1″

P/N: 9146-29F

Brass Adapter W / 1″NPT Vent Tube Connection

P/U: 9146-27U

Brass Adapter W / 1″NPT Vent Tube Connection, 165 Fusemetal

P/N: 9146-27H

Brass Adapter w/ 1″NPT Vent Tube Connection, 212 Fusemetal

P/N: 9146-27J

S.S. Vent Tube Nut, 1-1/8″

P/N: 9146-28

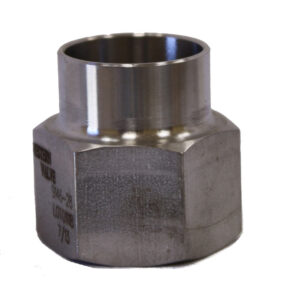

S.S. Vent Tube Nut, 1″

P/N: 9146-28F

Standard Weather Membrane

P/N: 9160-83

Weather Membrane for Recessed Adapter

P/N: 9160-83F

Non-Vent Plug, Brass

P/N: 9146-21

Non-Vent Plug w / 165 Fusemetal

P/N: 9146-21H

Non-Vent pluy w/ 212 Fusemetal

P/N: 9146-21J
