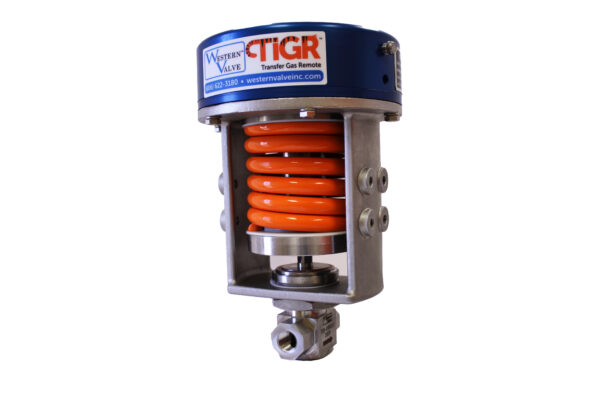

TGR Series Pneumatic Valve
Design Specifications:
- Valve type - O-ring seal valve
- Pneumatic operation
- Normally closed position
- Pressure Rating - Valve body pressure rating 4000 psi
- Cv Factor - 3.05
Material Specifications:
- Stainless steel valve body
- Stainless steel seat plug available with Kel-F or Vespel soft seat
- Stainless steel stem
- Stainless steel bonnet
- Fluorocarbon seal w/ Teflon back-up rings
- Nylatron thrust washer
- Teflon coated stainless steel seal ring
Additional Information (Select to download Product PDF Details):
