Front Relief Device
Specifications:
- Brass relief device
- Burst disc - Carpenter 20Cb3 material
- Copper washer seal
- 17-4PH stainless steel shear ring
- Rupture range - 3700-4000 psi @ 160ºF
- Flow - 978 CFM of air @ 60ºF & 100 psi
- Manufactured in accordance with CGA S.1.1 standard
Additional Information:
Replacement and Repair Parts
Copper Washer
P/N: 9146-6C
Shear Ring
P/N: 9146-24H
Rupture Disc
P/N: 9146-18 SERIES
1-1/2″ MNGT x 3/4 FNGT Left Side Port Safety Body
P/N: 9160X-2L-1
1-1 / 2″MNGT x 3 / 4″FNGT Right Side Port Safety Body
P/N: 9160X-2R-1

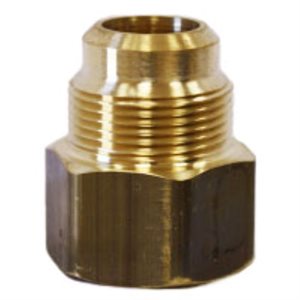

Standard Adaptor
P/N: -9146-25K
Adapter w / Weather Membrane Recess
P/N: 9146-25U
Adapter w / 165 Fusemetal
P/N: 9146-25KH
Adapter w / 212 Fusemetal
P/N: 9146-25KJ
Flare Nut 1-1/8″
P/N: 9146-29
Flare Nut 1″
P/N: 9146-29F

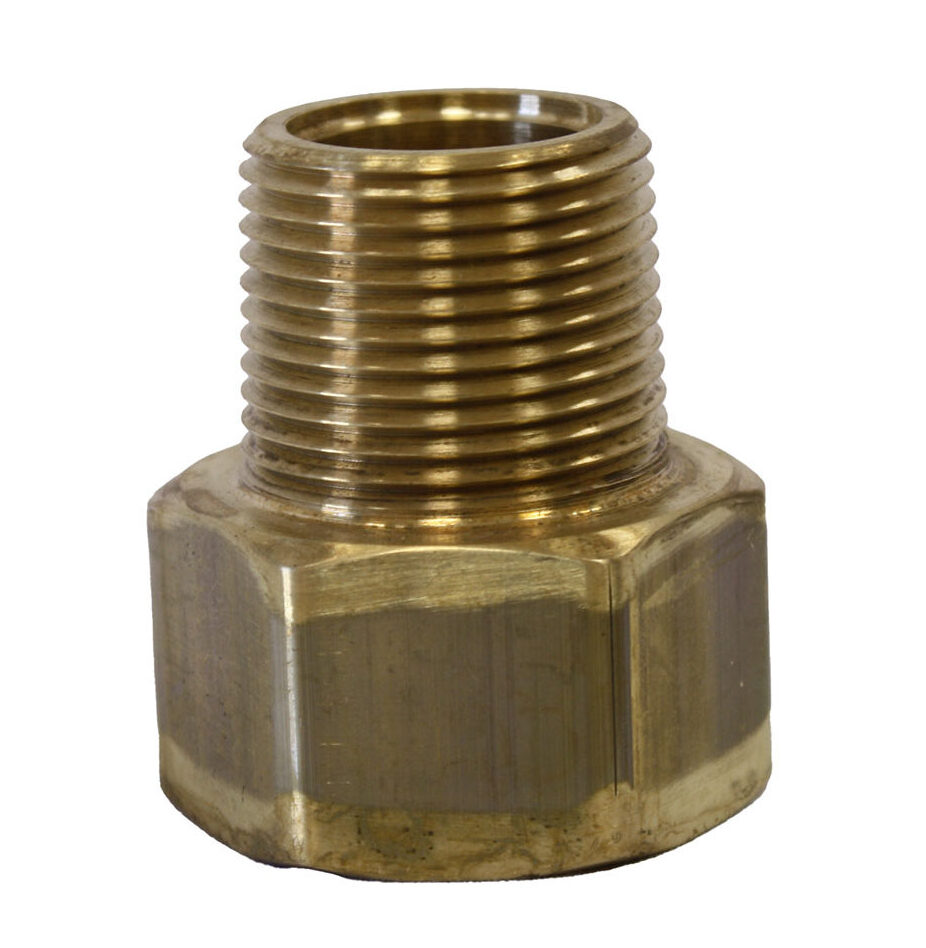

Adapter w / 1″NPT Tubing Connection
P/N: 9146-26U
Adapter w / 1″NPT Tubing Connection and 165 Fusemetal
P/N: 9146-26H
Adapter w / 1″NPT Tubing Connection and 212 Fusemetal
P/N: 9146-26J
Vent Tube Nut 1-1 / 8″
P/N: 9146-28
Vent Tube Nut 1″
P/N: 9146-28F
Standard Weather Membrane
P/N: 9160-83
Weather Membrane for Recessed Adapter
P/N: 9160-83F
Non-Vent Cap for 9160 Series
P/N: 9146-20
